DIGITAL DOWNLOAD ONLY — no physical fire pit, steel, hardware, or materials will be shipped.
Get the complete Bastion 30 collection: Emberfall, Blackridge, Hexcore, and the optional IronCanvas customization blank in one coordinated four-sided fabrication system.
FOUR INCLUDED STYLES
– Emberfall — four precision ember slots per panel
– Blackridge — angular mountain and ridgeline openings
– Hexcore — separated hexagonal ventilation field
– IronCanvas — optional solid customization blank; suitable ventilation openings are required before fire use
WHAT YOU RECEIVE

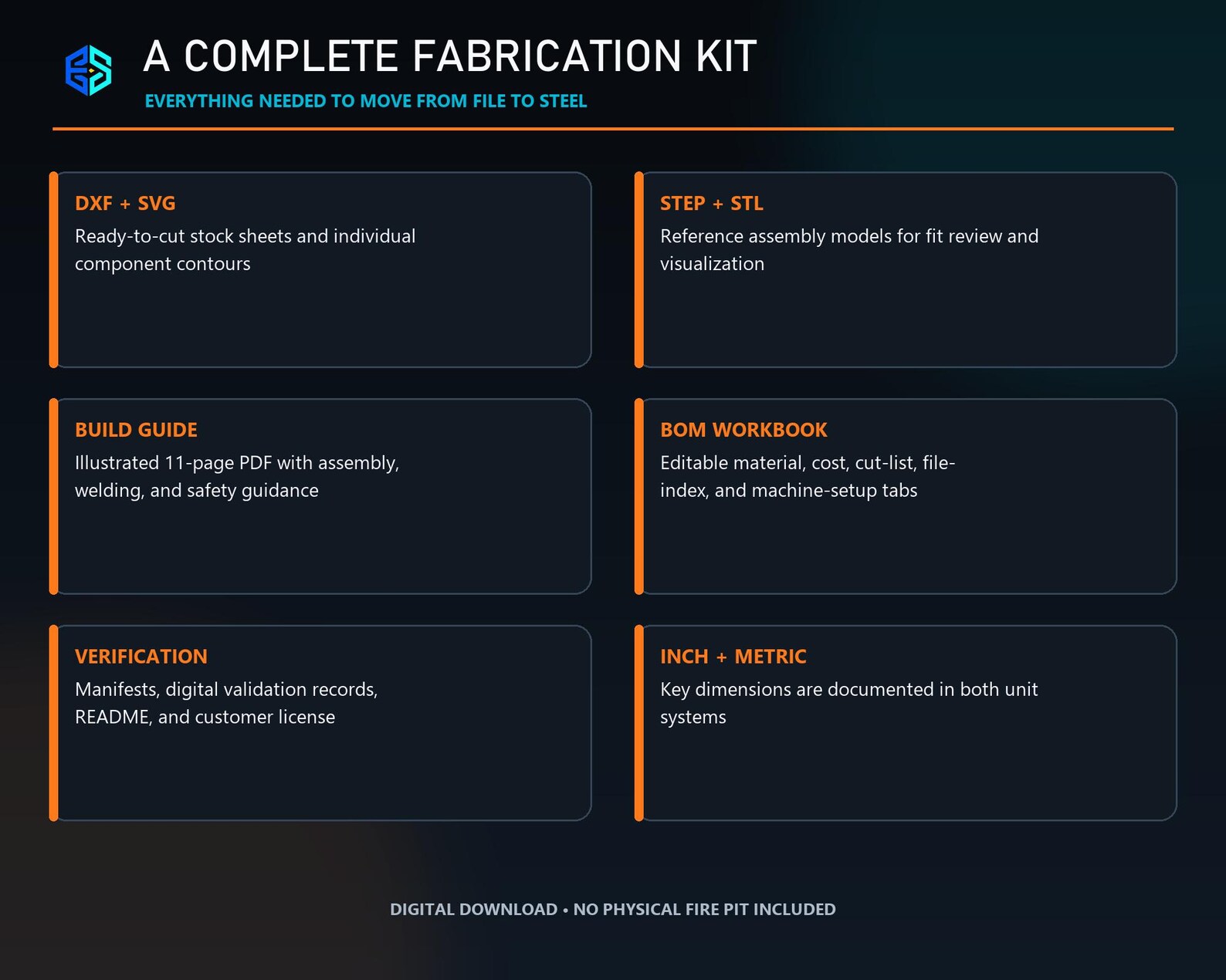

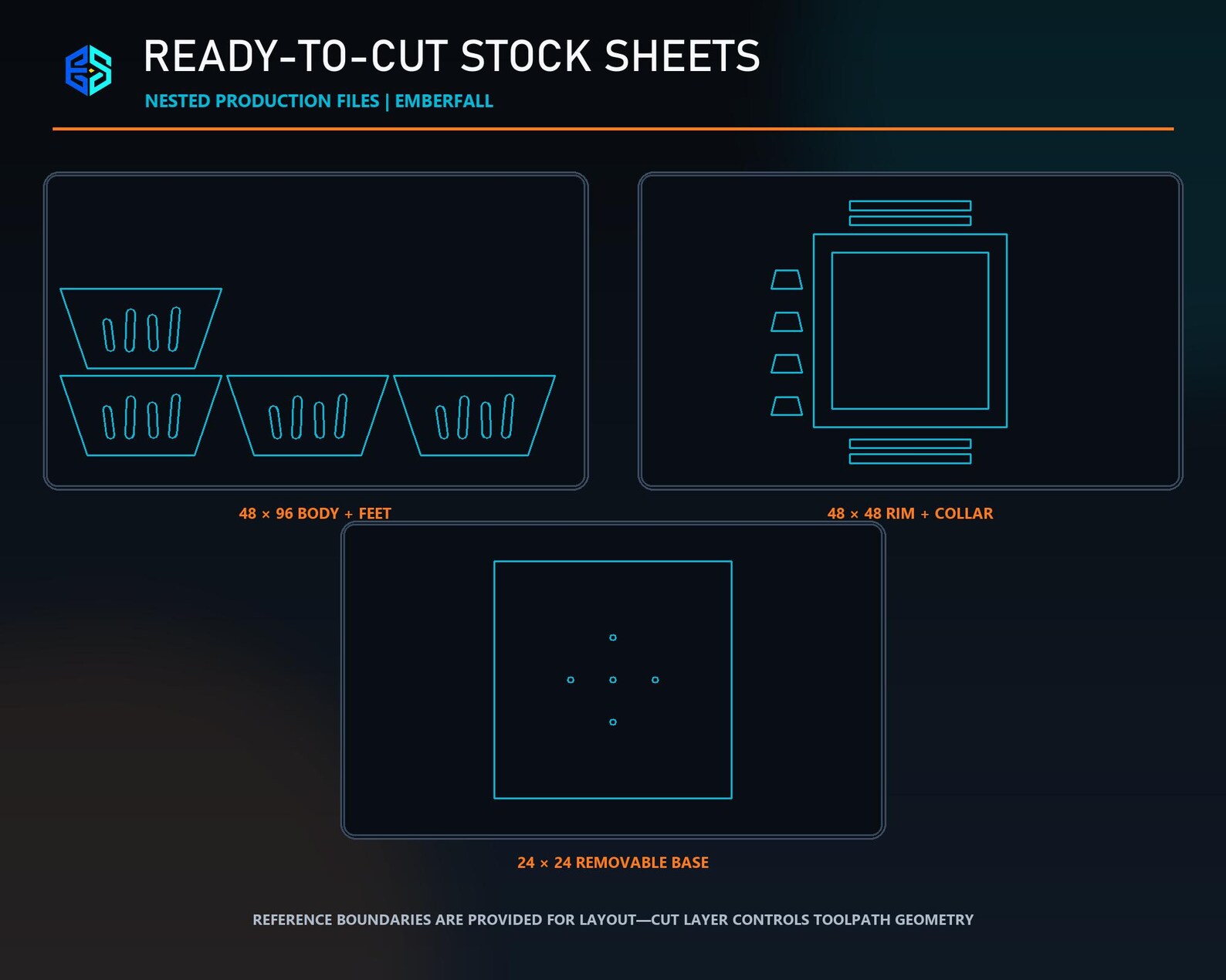

– 12 production-ready DXF cut sheets and 12 matching SVG cut sheets
– Individual DXF and SVG component files for all four styles and shared structural parts
– Four STEP and four STL reference assembly models

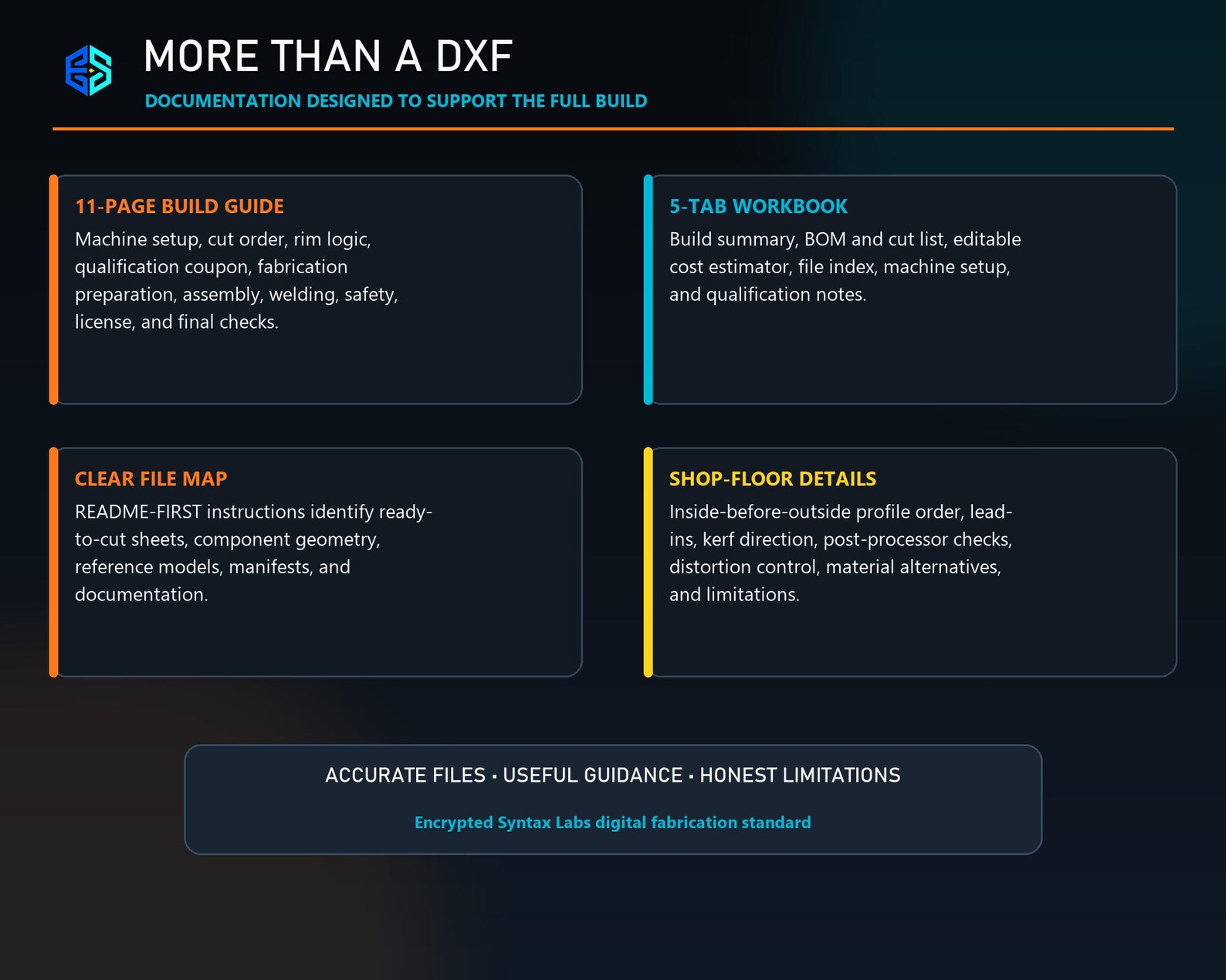

– Illustrated 11-page PDF build guide
– Editable 5-tab XLSX BOM, cut-list, cost, file-index, and machine-setup workbook
– Inch and metric dimensions
– Assembly, welding, heat-control, material, machine-setup, and safety guidance
– README-FIRST, customer license, manifests, and digital validation records
DESIGN BASIS

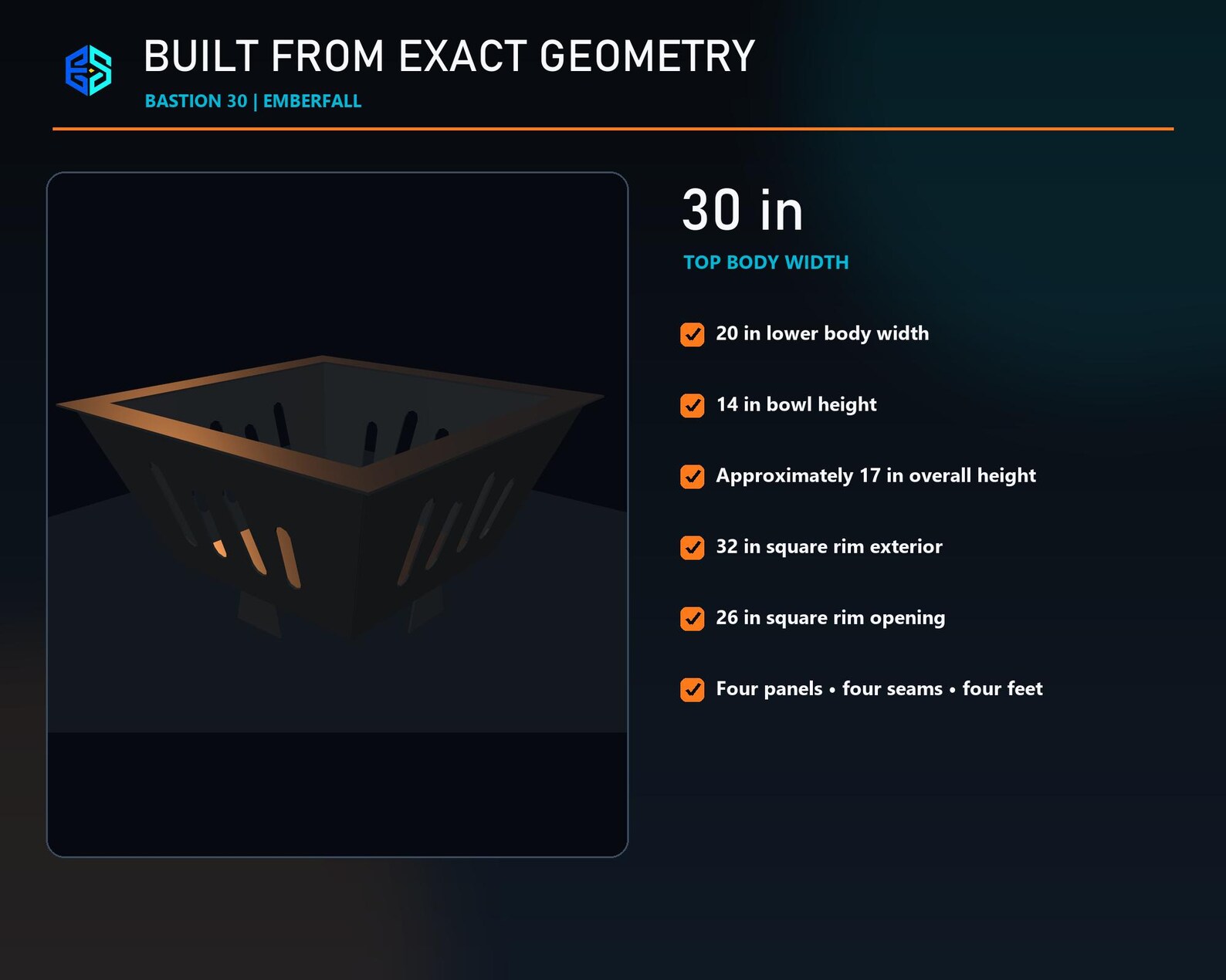

– Four-sided square tapered body
– 30 in top body width; 20 in lower body width
– 14 in bowl height; approximately 17 in overall height
– 32 in square rim exterior with 26 in square opening

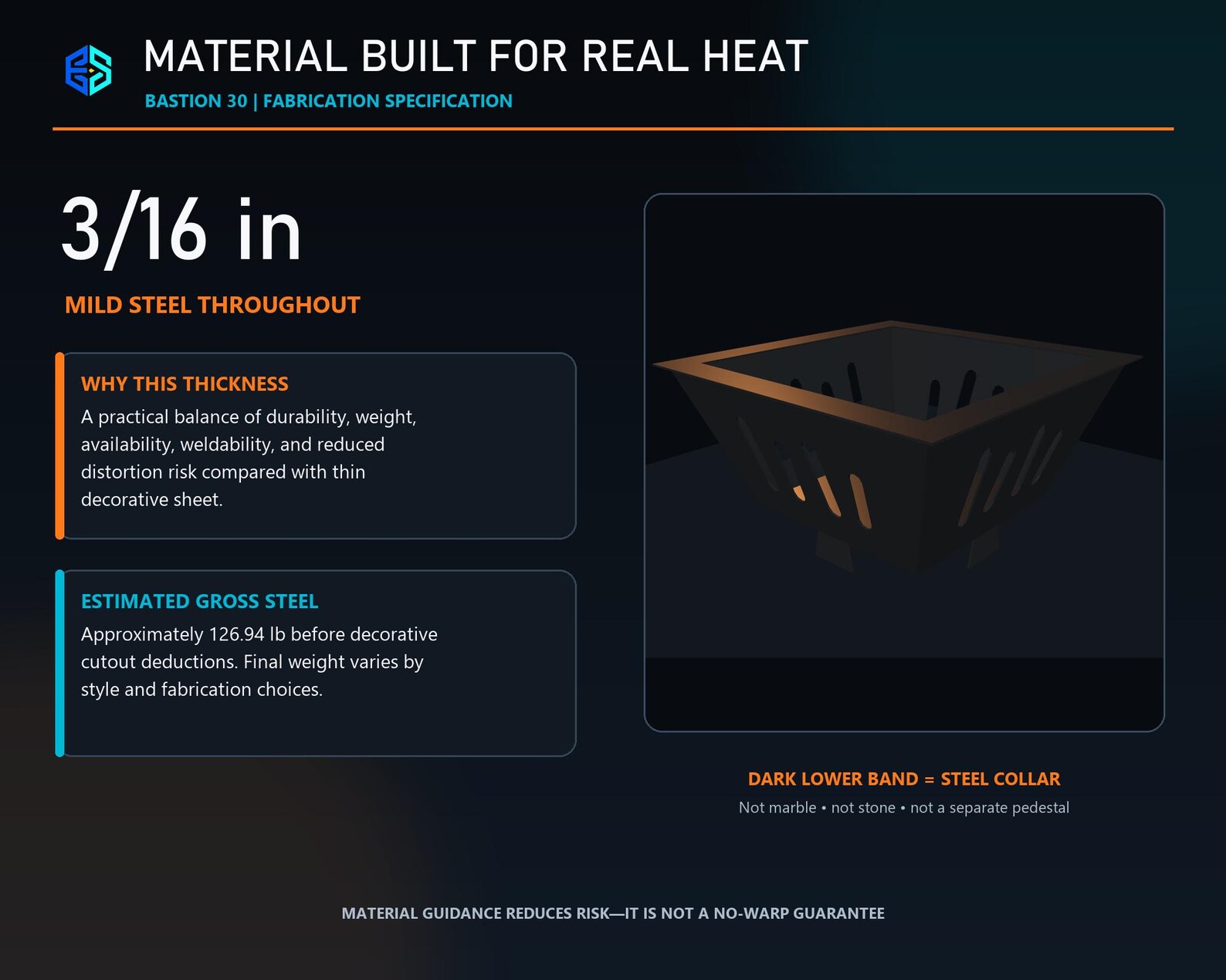

– Recommended material: 3/16 in mild steel throughout
– Four trapezoidal panels, four seams, four feet, removable base, and lower steel collar
– Approximately 126.94 lb gross steel before decorative cutout deductions
IRONCANVAS SAFETY REQUIREMENT
IronCanvas is an optional solid customization blank. Add suitable openings to all four panels before fire use. Preserve adequate steel bridges and edge margins, and confirm airflow and structural integrity. Do not operate the unmodified solid-panel configuration shown in the unlit visualization.
MACHINE COMPATIBILITY

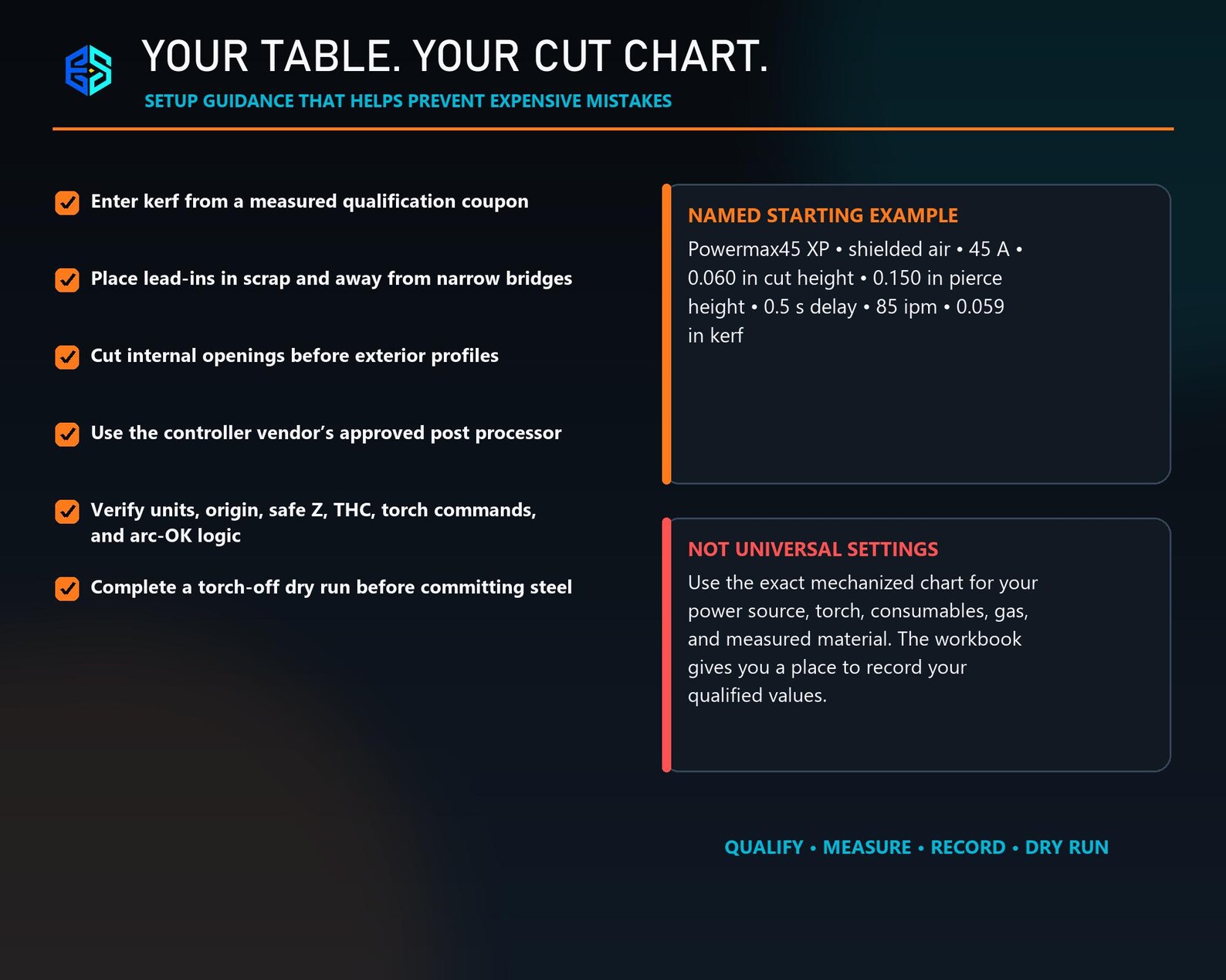

Designed for CNC plasma, laser, or waterjet workflows using software that imports DXF or SVG, including Autodesk Fusion and common CAM programs. Verify units, scale, contours, kerf, lead-ins, cut order, machine settings, and post processor before cutting.
VERIFICATION AND MEDIA DISCLOSURE

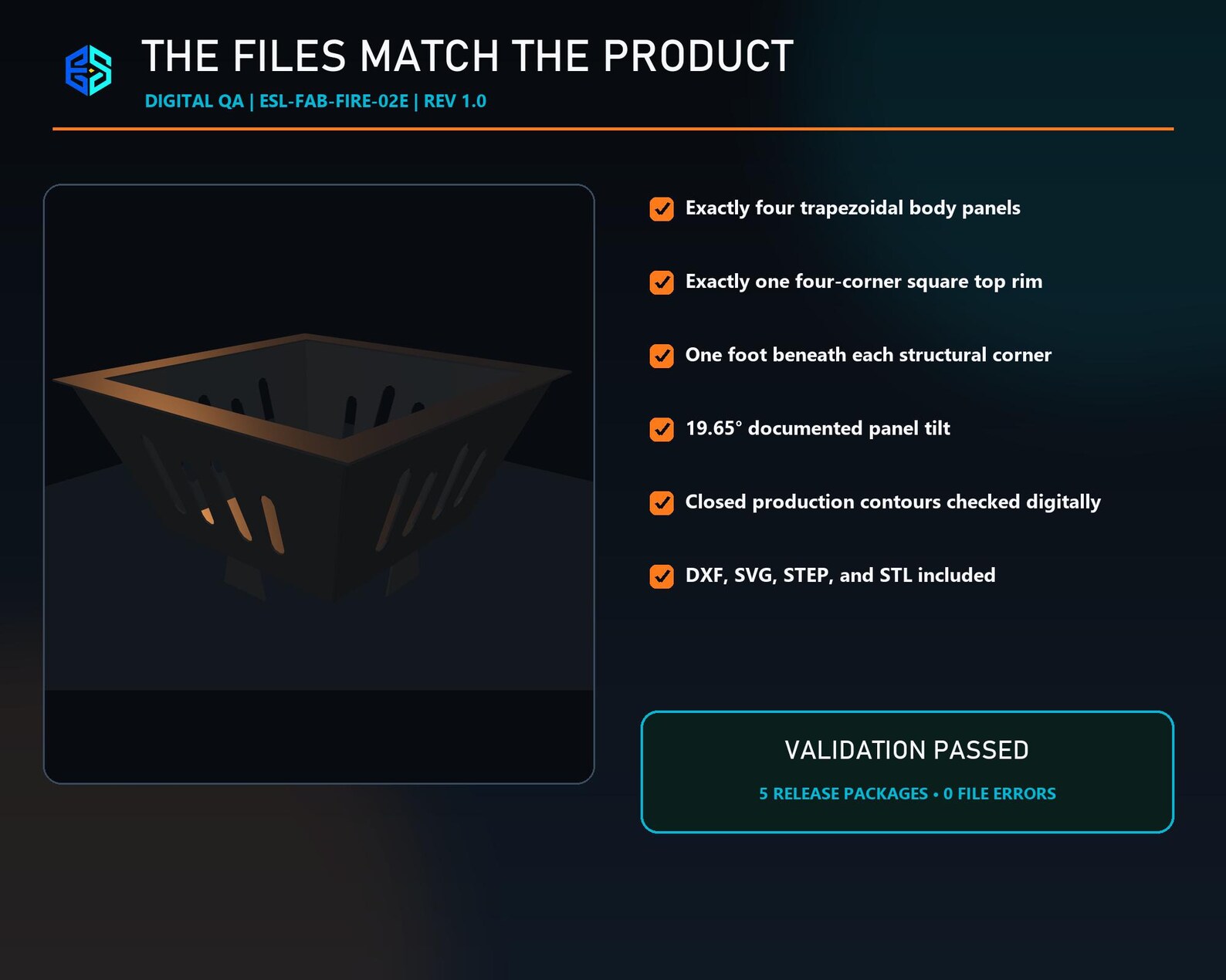

All five release archives passed integrity and content validation. Lifestyle images are digital visualizations. Exact production geometry is defined by the included DXF and SVG files. This design has not been physically fabricated, heat-cycled, or burn-tested.
LICENSE AND SAFETY

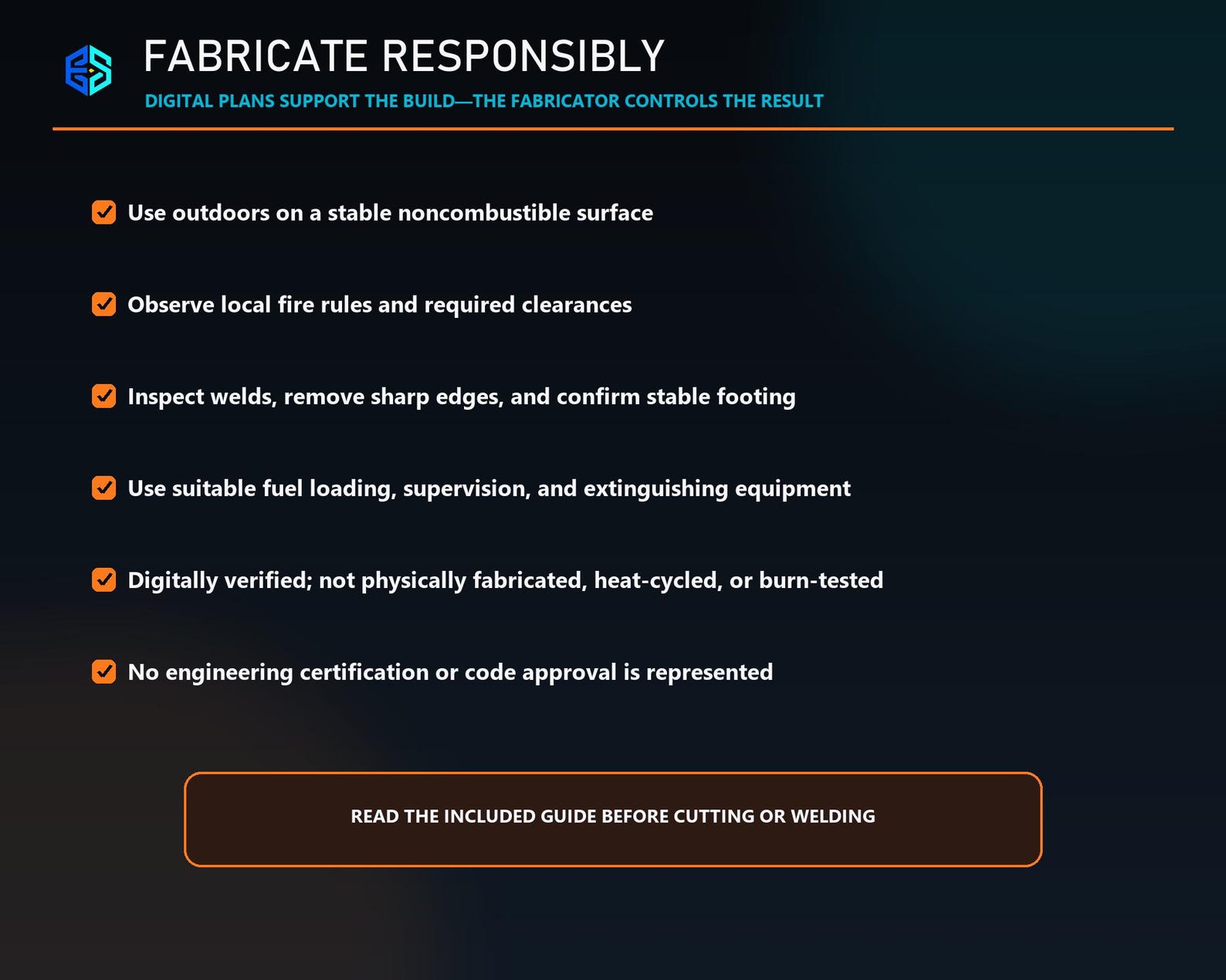

The purchaser may fabricate physical products for personal use or limited small-business sale. Digital files may not be redistributed. This is not an engineering certification, code approval, or finished appliance. The fabricator is responsible for fabrication quality and safe use.
Digital products cannot be returned, exchanged, or canceled after download. Contact Encrypted Syntax Labs if a supplied file issue is found before cutting.
Secure digital delivery
Purchase directly from Encrypted Syntax Labs for protected account-based downloads after successful payment. No physical item will be shipped.
Prefer Etsy? Purchase this product through our Etsy shop.
