Description
ArcHaul Core is the compact member of the Encrypted Syntax Labs Fabricator Series. It is designed for fabricators who want a clean single-machine cart without giving up organized storage, cylinder restraint, or serviceable CAD files.

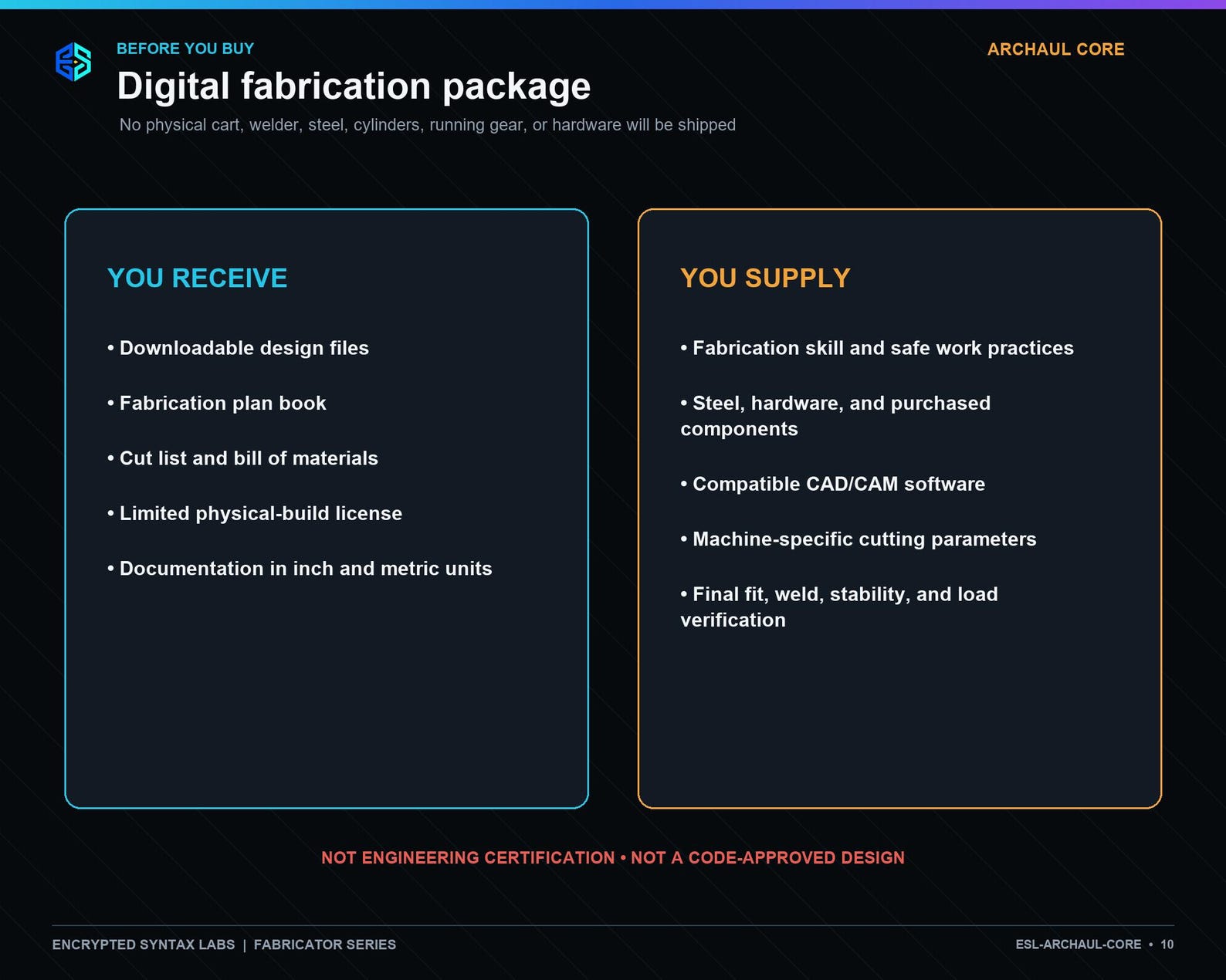

WHAT YOU RECEIVE

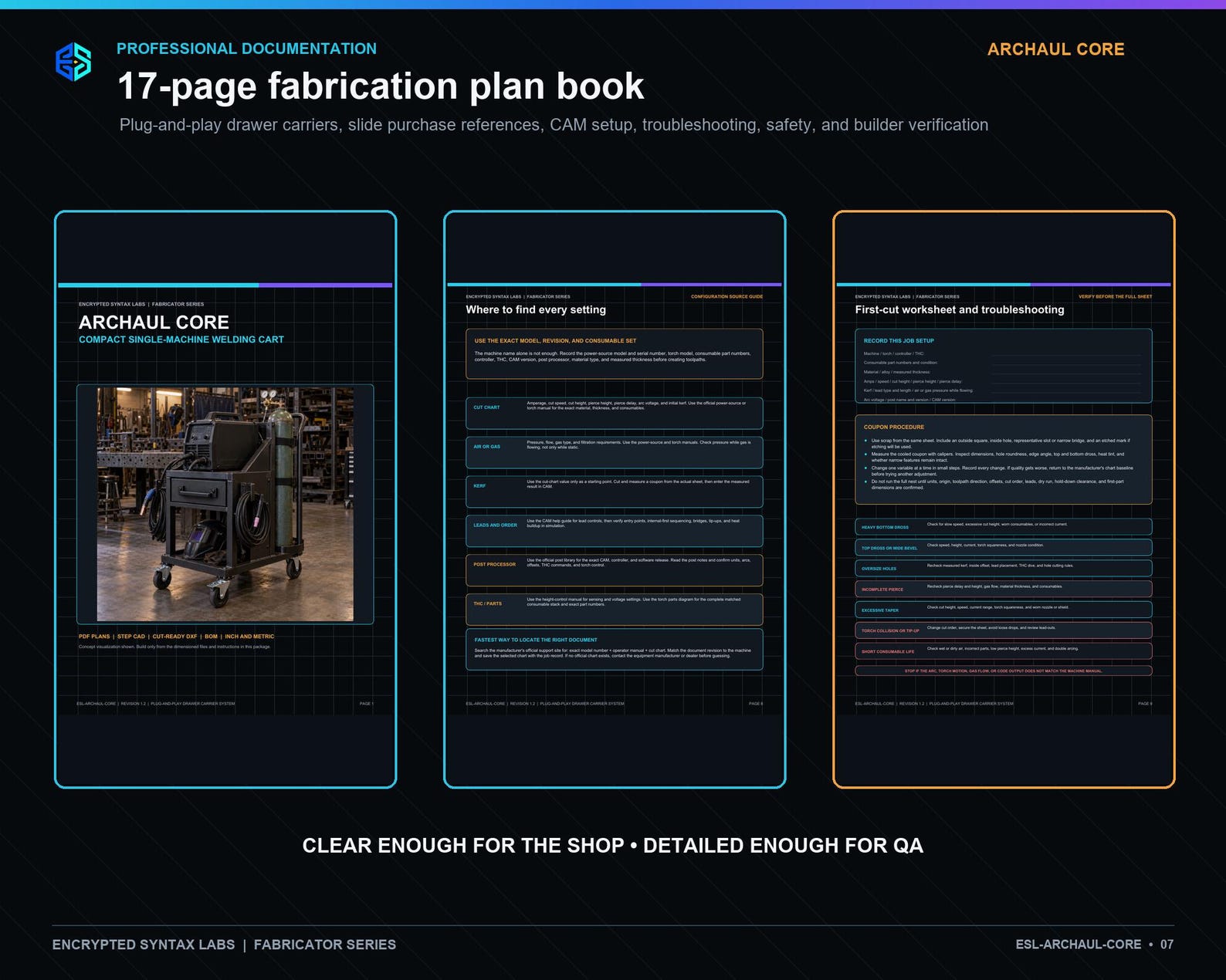

- 17-page branded PDF fabrication plan book

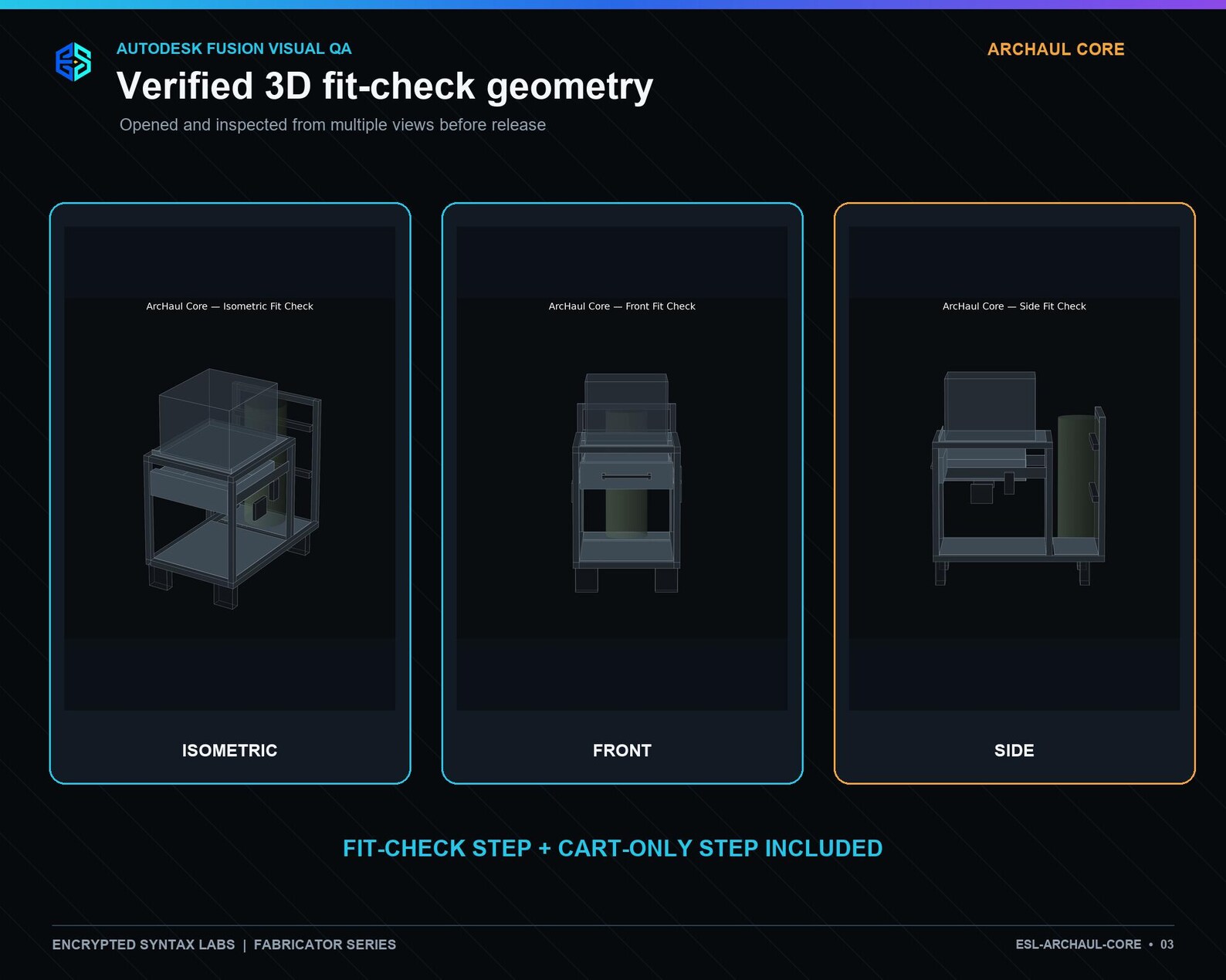

- Cart-only STEP model
- Equipment fit-check STEP model

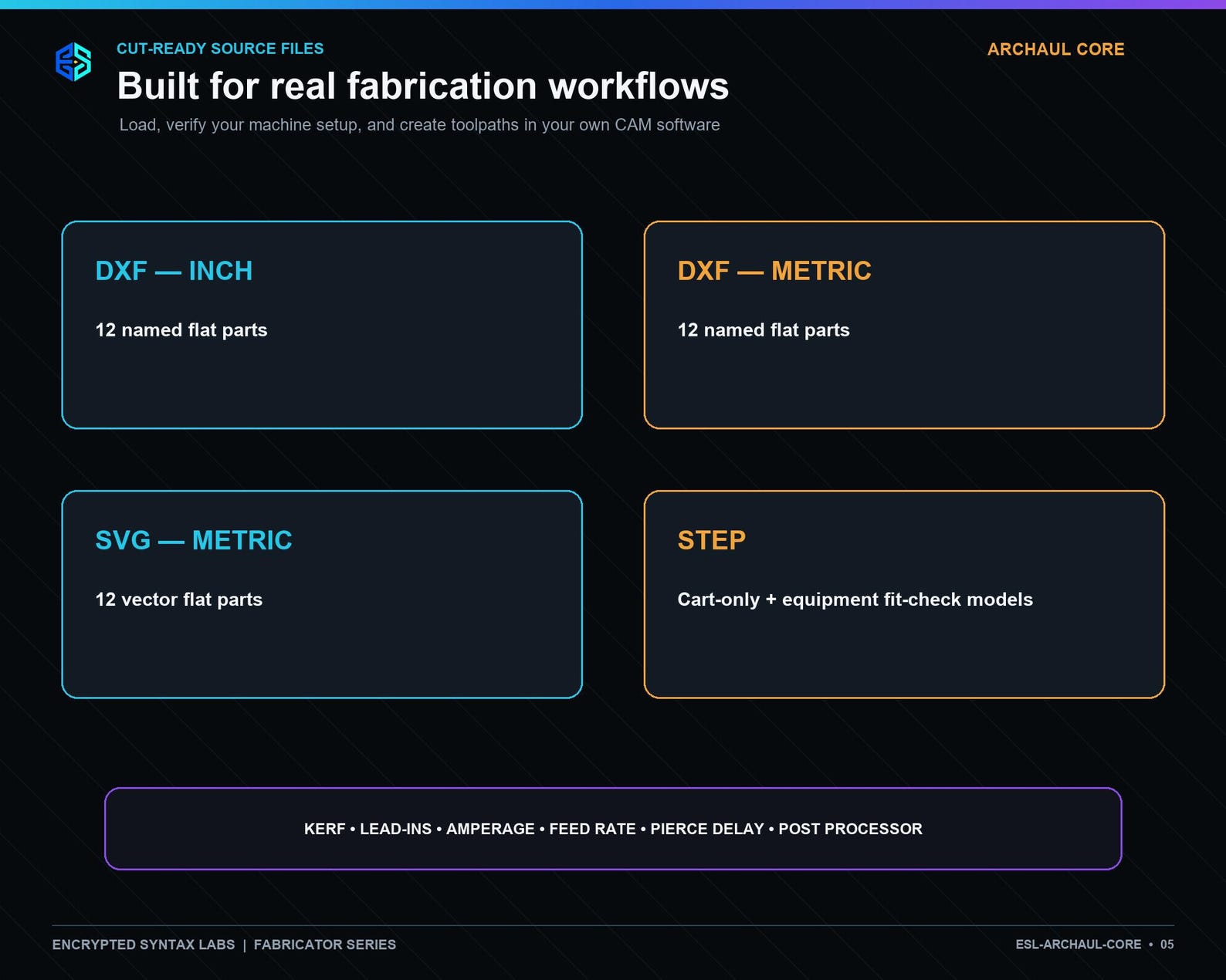

- 12 DXF flat-part files in inch units
- 12 DXF flat-part files in metric units
- 12 metric SVG flat-part files
- Two 24 in full-length slide-carrier rails and four formed end brackets
- Drawer-slide purchase guide with Rockler item number, Accuride drawing, and McMaster alternate
- Tube cut list and bill of materials in CSV format
- Read-me, verification notes, and limited physical-build license
DESIGN ENVELOPE

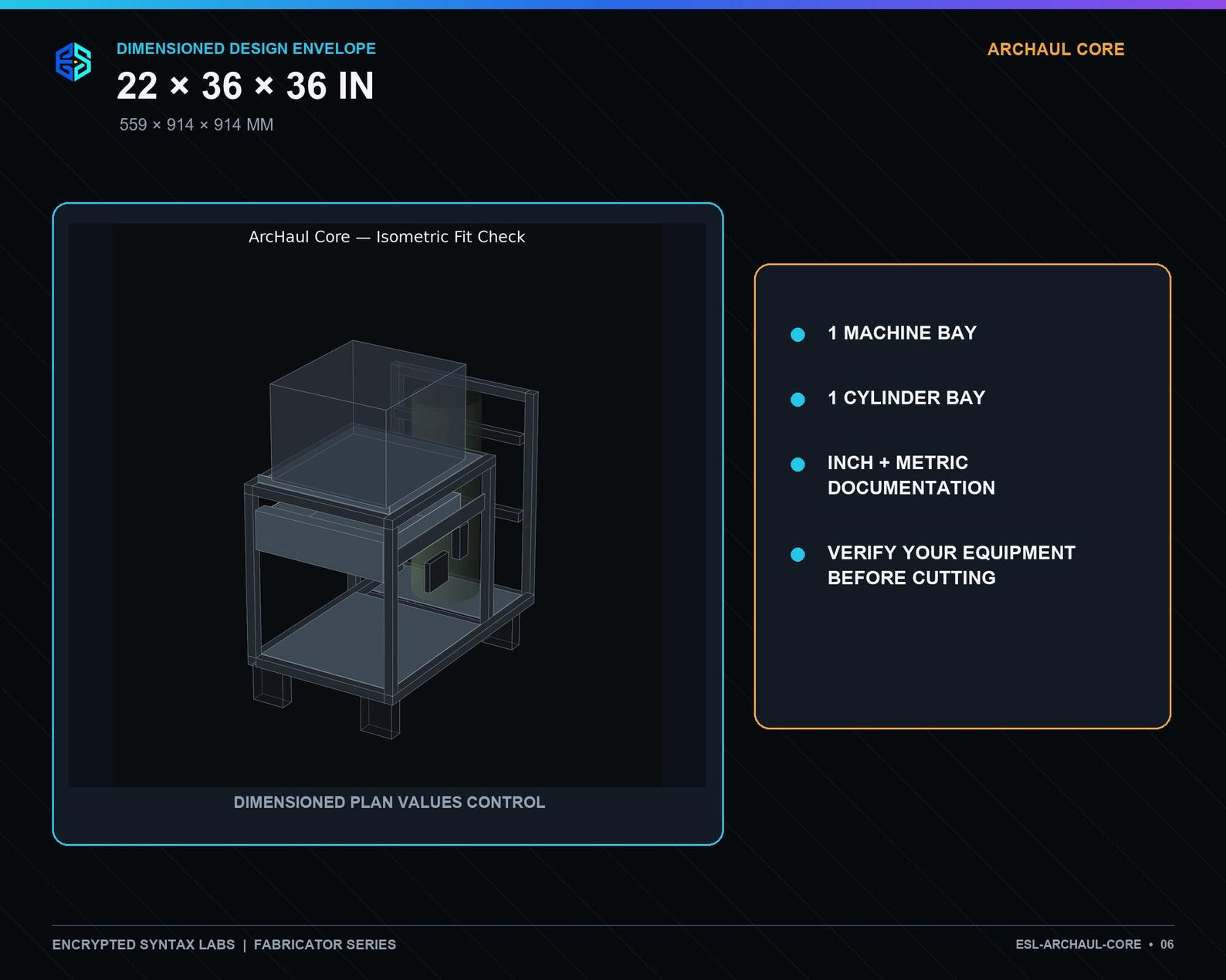

- Overall nominal envelope: 22 × 36 × 36 in
- Metric envelope: 559 × 914 × 914 mm
- One top machine bay
- One rear cylinder bay
- Full-width drawer
- Open lower shelf
- Dual cable/torch hooks
- Four running-gear locations
PLUG-AND-PLAY DRAWER SYSTEM
The controlled reference is an 18 in Accuride 3832E full-extension side-mount slide pair (Rockler item 63269). The package includes slotted carrier rails, formed bolt-on end brackets, fit-stack dimensions, a direct manufacturer drawing, #8 fastener guidance, and a heavier McMaster-Carr alternate. Purchased slides and the recommended positive mobile-cart drawer latch are not included. Alternate slides must be measured and match-drilled because hole patterns and body heights vary.
FABRICATION WORKFLOW

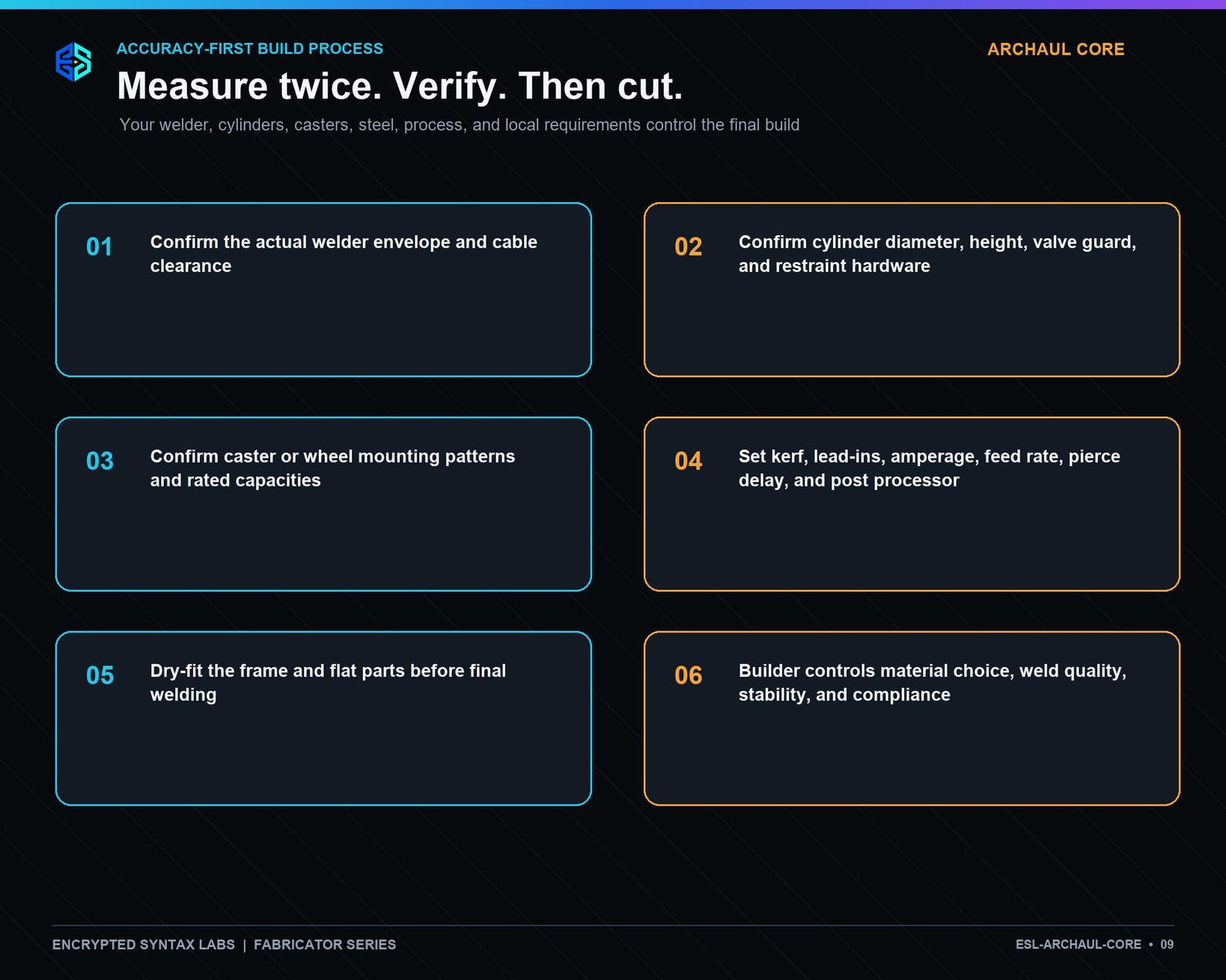

Open the supplied DXF, SVG, or STEP files in compatible CAD/CAM software. Before cutting, confirm your actual welder, cylinder, caster mounting patterns, material thicknesses, and shop process. Set kerf, lead-ins, amperage, feed rate, pierce delay, and post processor for your own plasma table or cutting system.
IMPORTANT

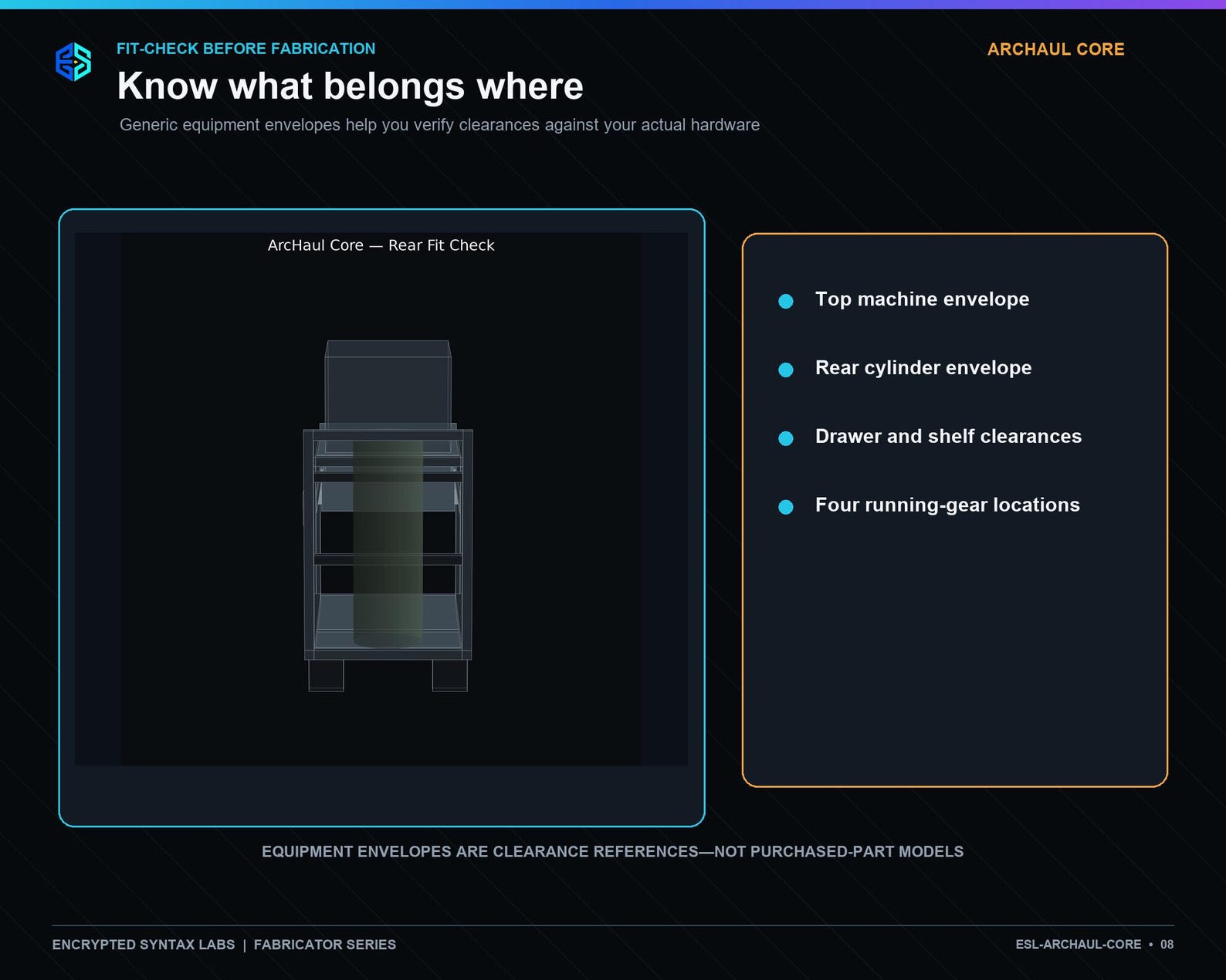

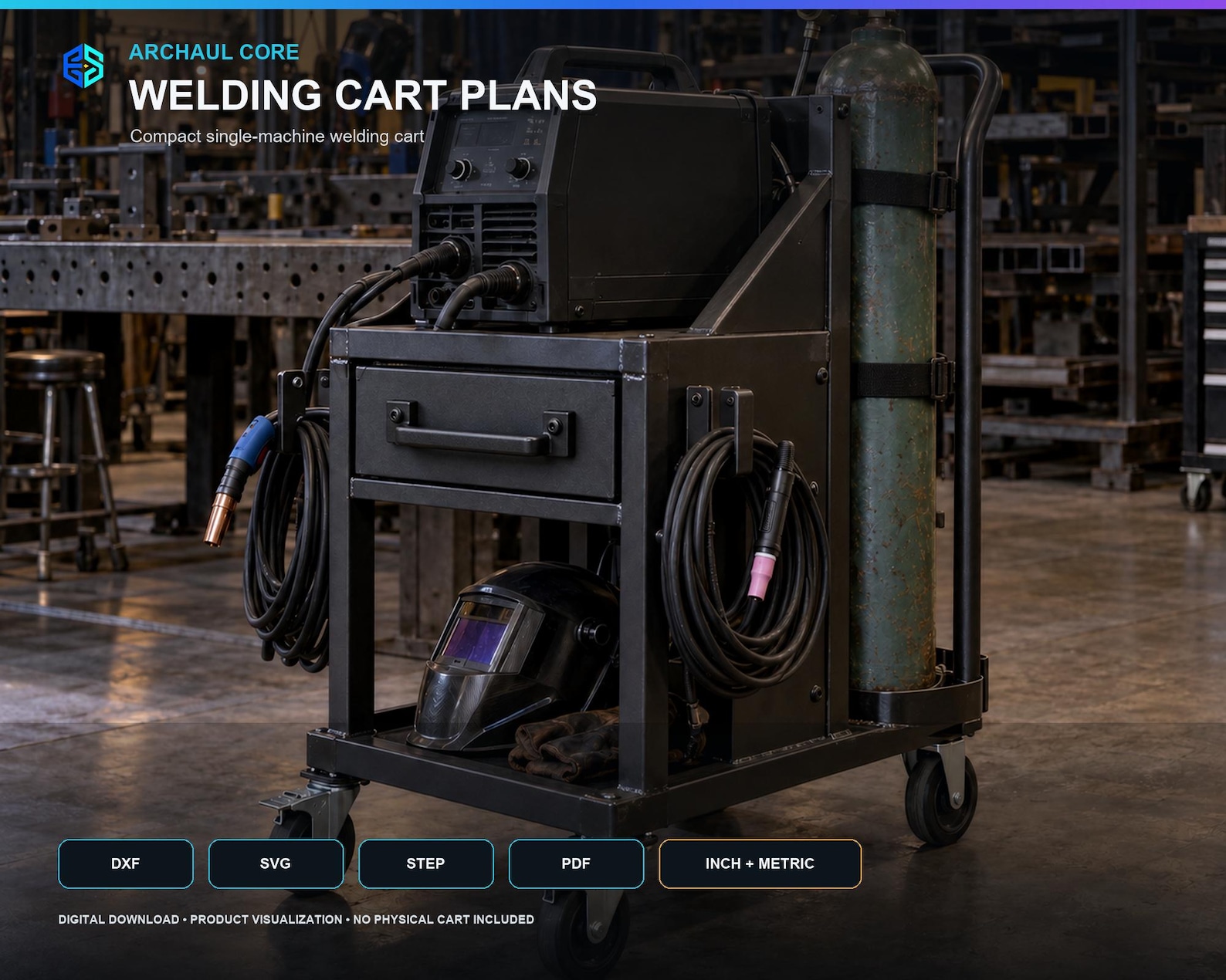

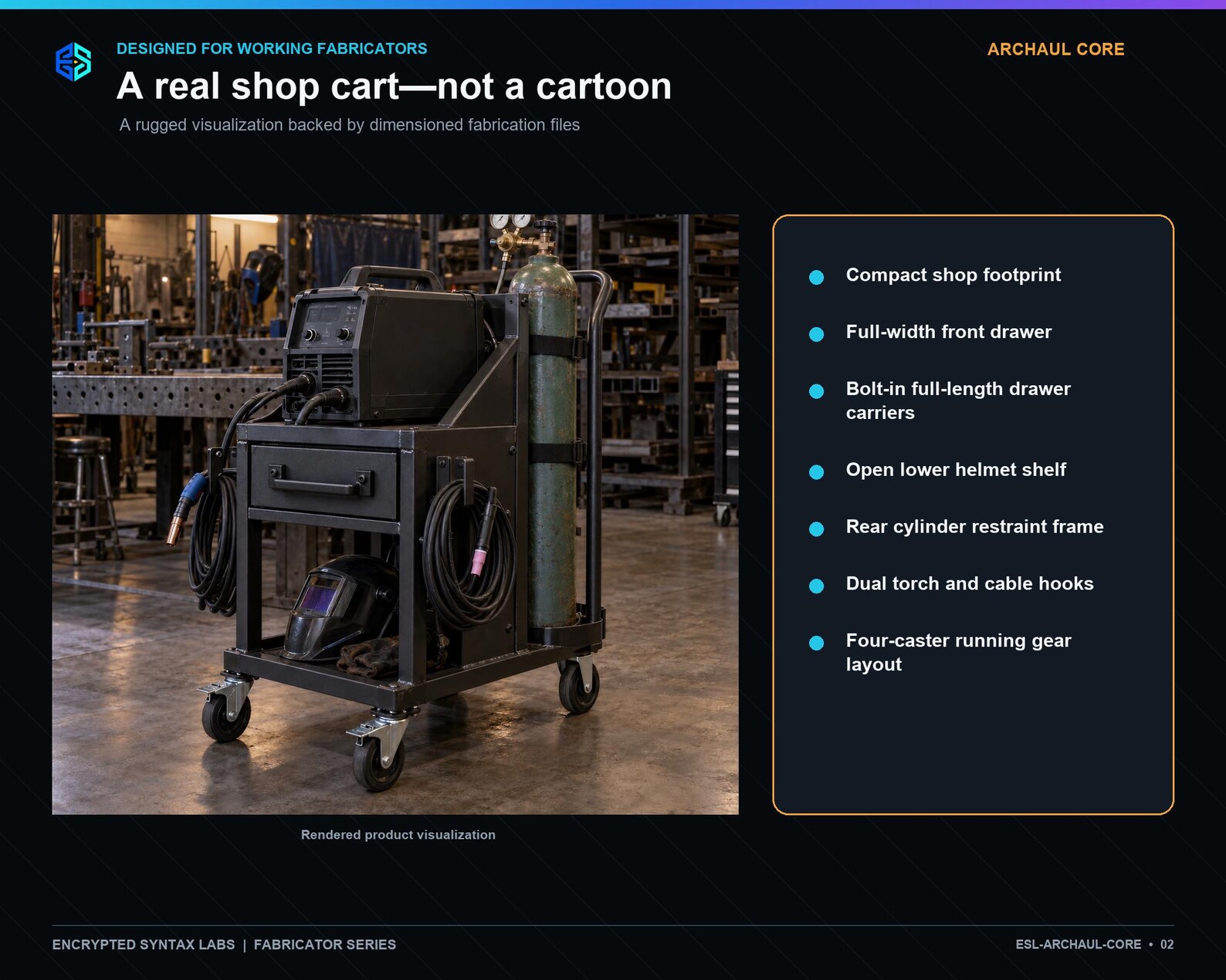

The product photographs are rendered visualizations of the intended finished cart. Dimensioned plan values and supplied CAD files control the build. Generic machine, cylinder, and running-gear solids in the fit-check model are clearance references, not purchased-part models.
Builder is responsible for material selection, weld quality, stability, final fit, load verification, safe fabrication practices, and compliance with applicable requirements. This package is not engineering certification or a code-approved design.
Secure digital delivery
Purchase directly from Encrypted Syntax Labs for protected account-based downloads after successful payment. No physical item will be shipped.
