Description
DIGITAL DOWNLOAD ONLY – no physical fire pit, steel, hardware, or materials will be shipped.

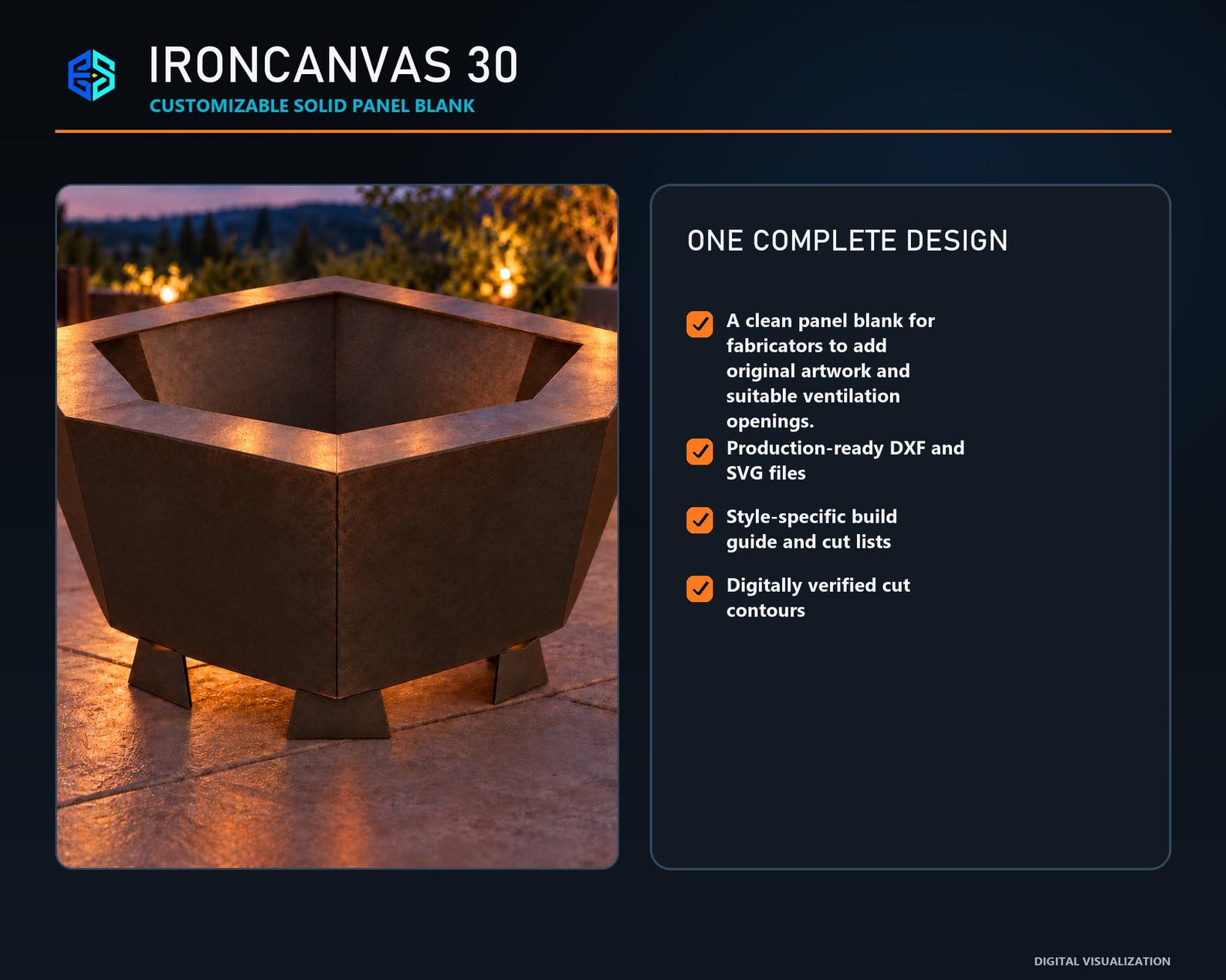

Build the IronCanvas 30, a professional 30-inch six-sided steel fire pit from the ESL Ironfire Series. A clean panel blank for fabricators to add original artwork and suitable ventilation openings.
WHAT YOU RECEIVE

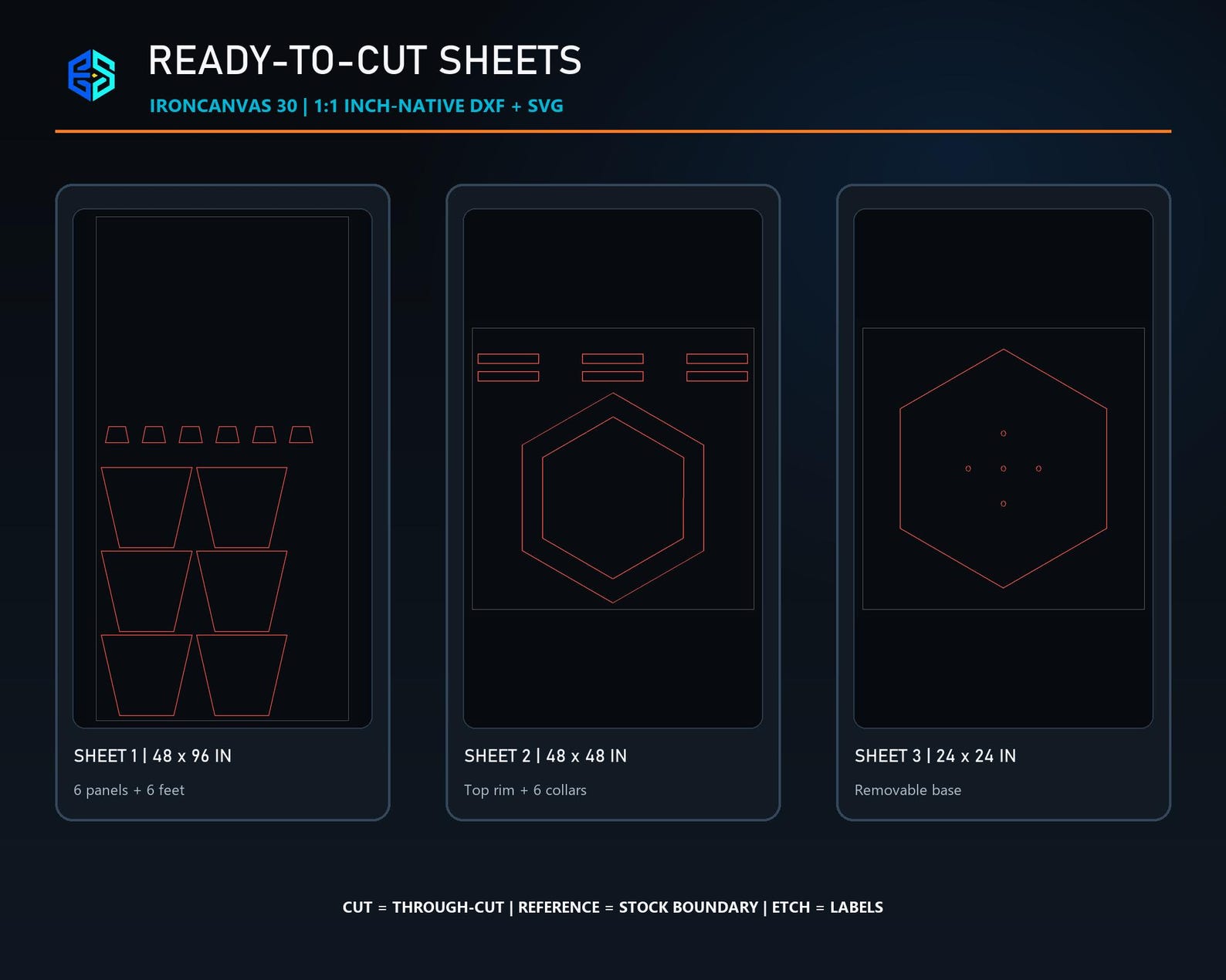

– 3 production-ready DXF cut sheets
– 3 matching SVG cut sheets
– Individual DXF and SVG component files
– Style-specific illustrated PDF build guide
– Bill of materials and cut list
– Inch and metric dimensions
– Assembly order and welding guidance
– Kerf, lead-in, amperage, feed-rate, pierce-delay, qualification-coupon, and post-processor guidance
– Digital validation record

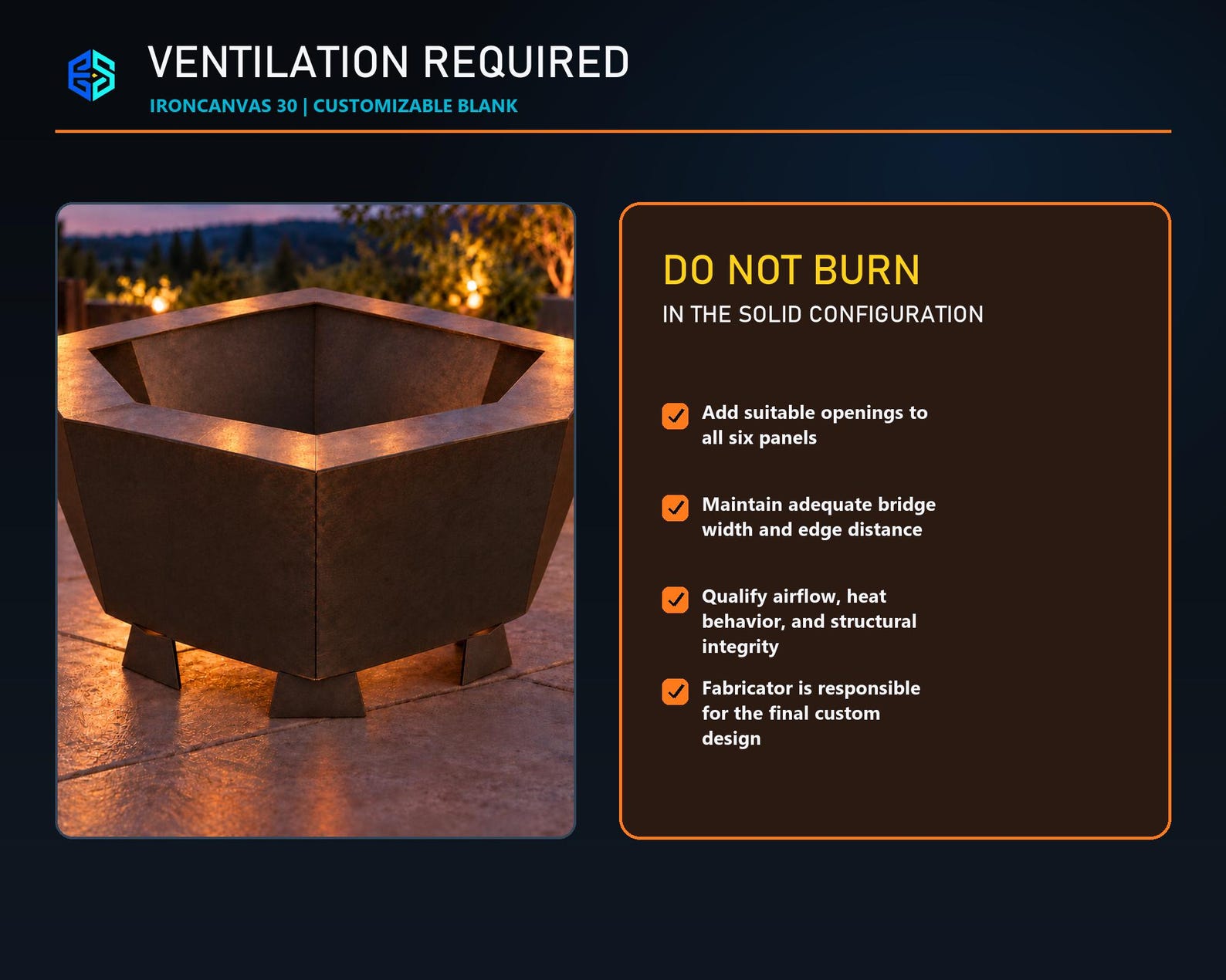

IMPORTANT: This is a customizable solid-panel blank. Suitable ventilation openings must be added to all six panels before fire use. Do not operate the solid blank configuration.

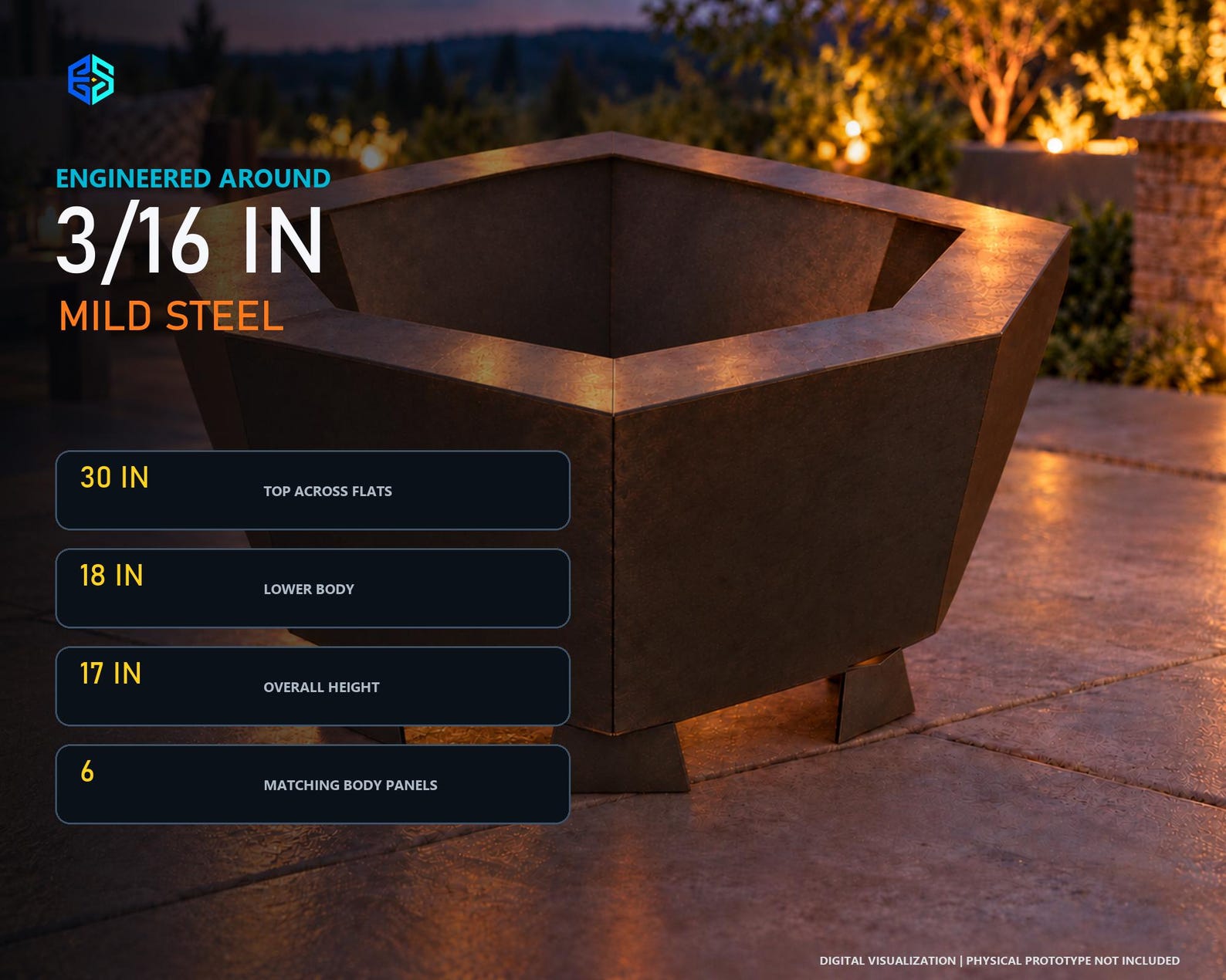

DESIGN BASIS
– Approximately 30 inches across flats
– Approximately 17 inches overall height
– Recommended material: 3/16-inch mild steel
– Six matching trapezoidal side panels
– One-piece top rim ring and six-piece lower reinforcement collar
– Removable base and six feet
– CNC cutting and welding required
COMPATIBILITY
Designed for CNC plasma, laser, or waterjet workflows using software capable of importing standard DXF or SVG files, including Autodesk Fusion and common CAM programs. Always verify units, scale, closed contours, kerf compensation, lead-ins, machine settings, and post processor before cutting.
VERIFICATION

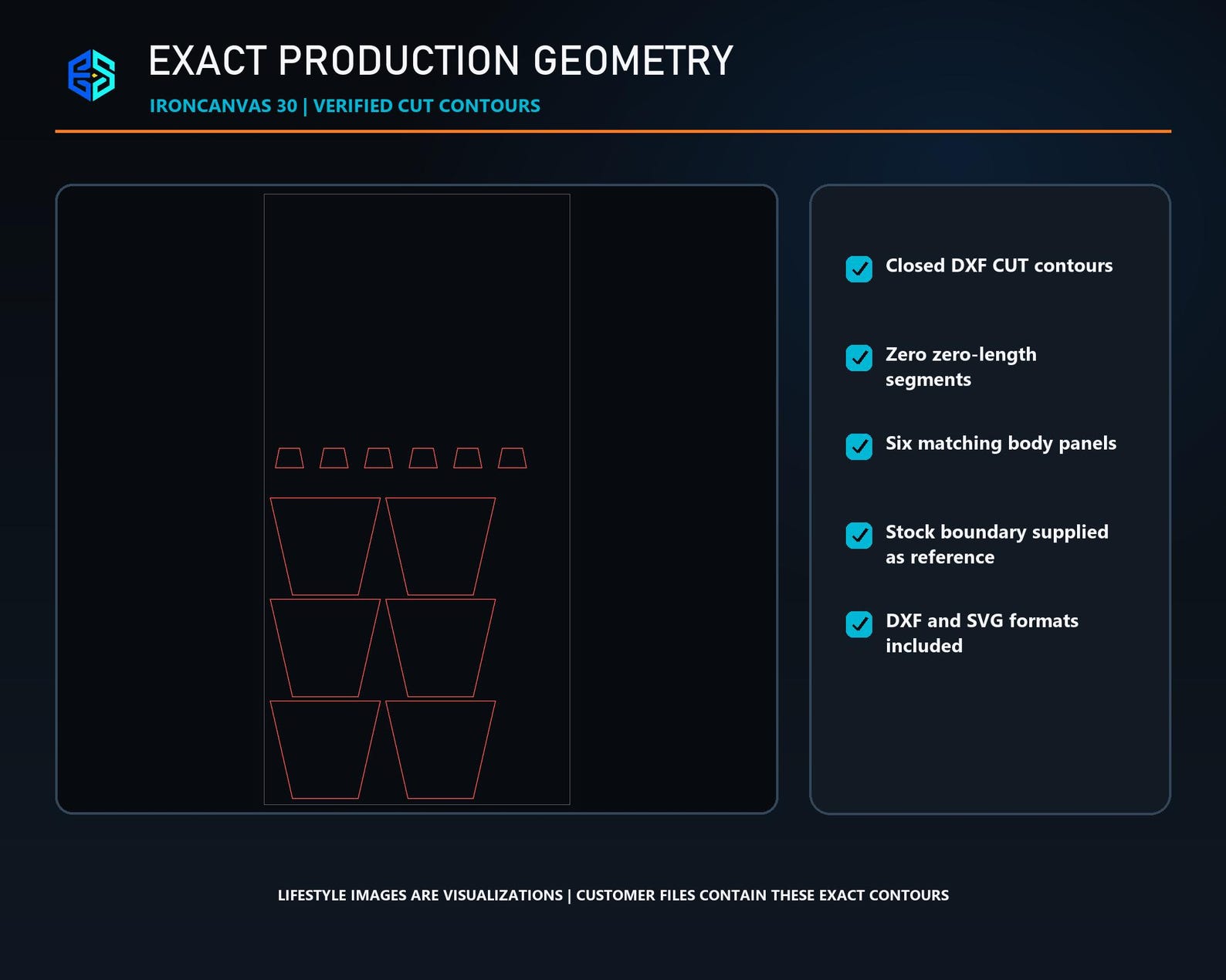

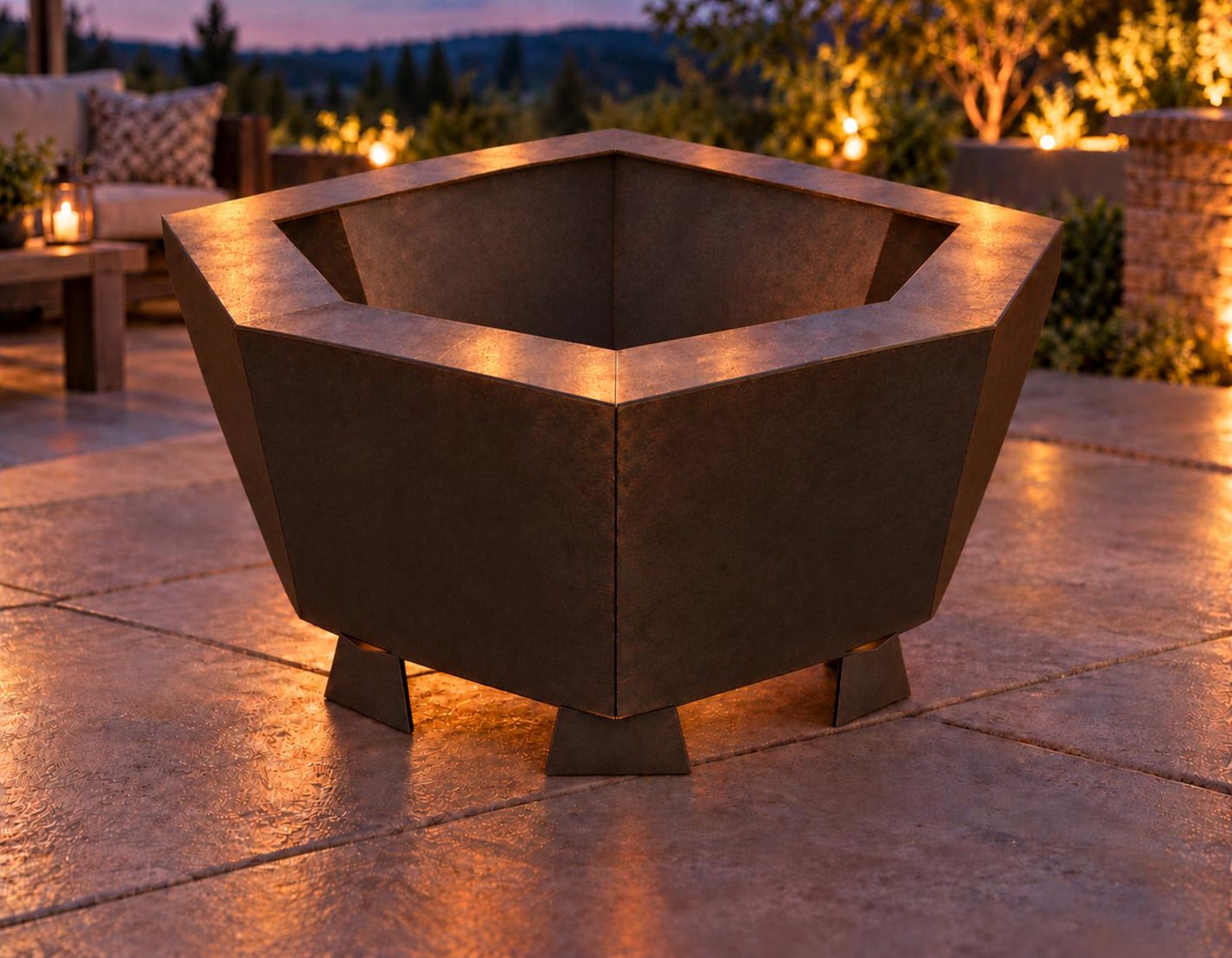

The supplied production DXF contours were digitally checked for closed geometry and zero-length segments. Exact production contours are shown in the listing images and supplied download. Lifestyle images are digital visualizations of the intended finished result.
LICENSE
You may use the files to fabricate physical items for personal use or limited small-business sale. You may not resell, share, upload, sublicense, or redistribute the digital files or modified versions.
SAFETY AND RESPONSIBILITY
This product is a digital fabrication design, not an engineering certification, code approval, or finished appliance. It has not been physically fabricated or burn-tested. The buyer/fabricator is responsible for machine setup, material selection, cutting, welding, assembly quality, ventilation, fuel choice, placement, operation, local rules, and safe use.
Digital products cannot be returned, exchanged, or canceled after download. Contact Encrypted Syntax Labs if you experience a supplied-file issue.
Secure digital delivery
Purchase directly from Encrypted Syntax Labs for protected account-based downloads after successful payment. No physical item will be shipped.
